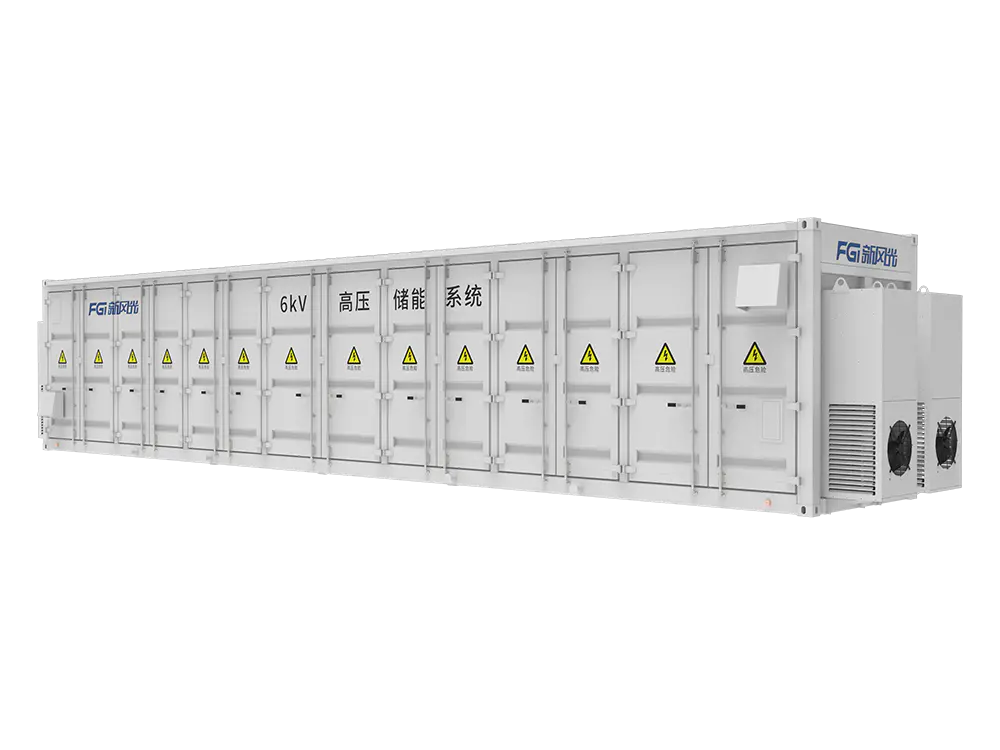

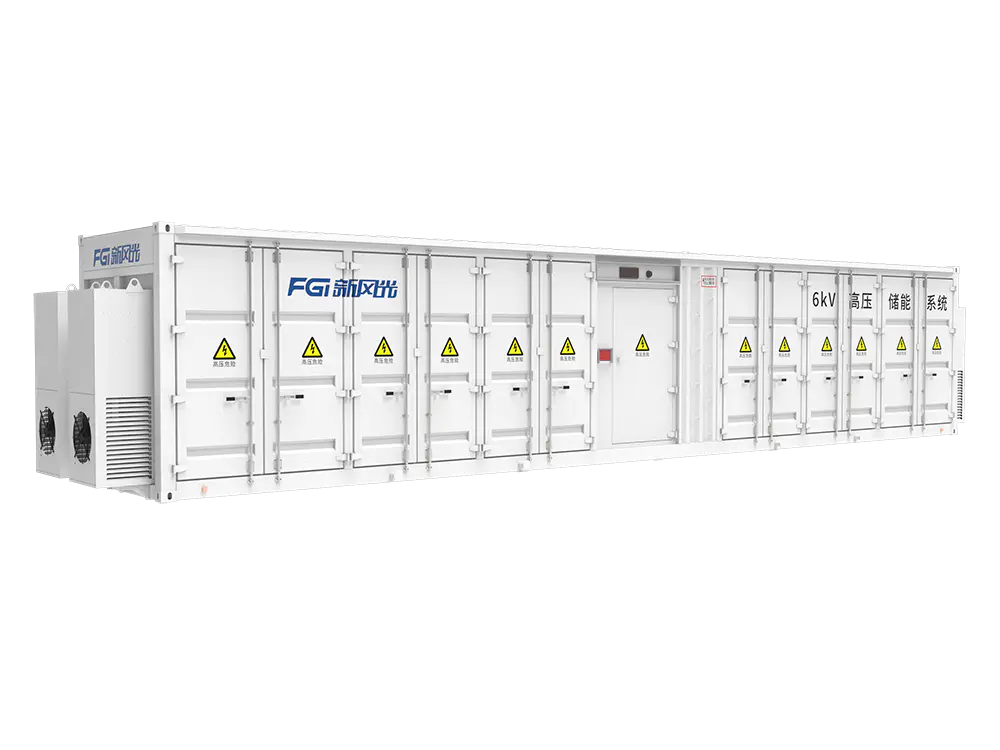

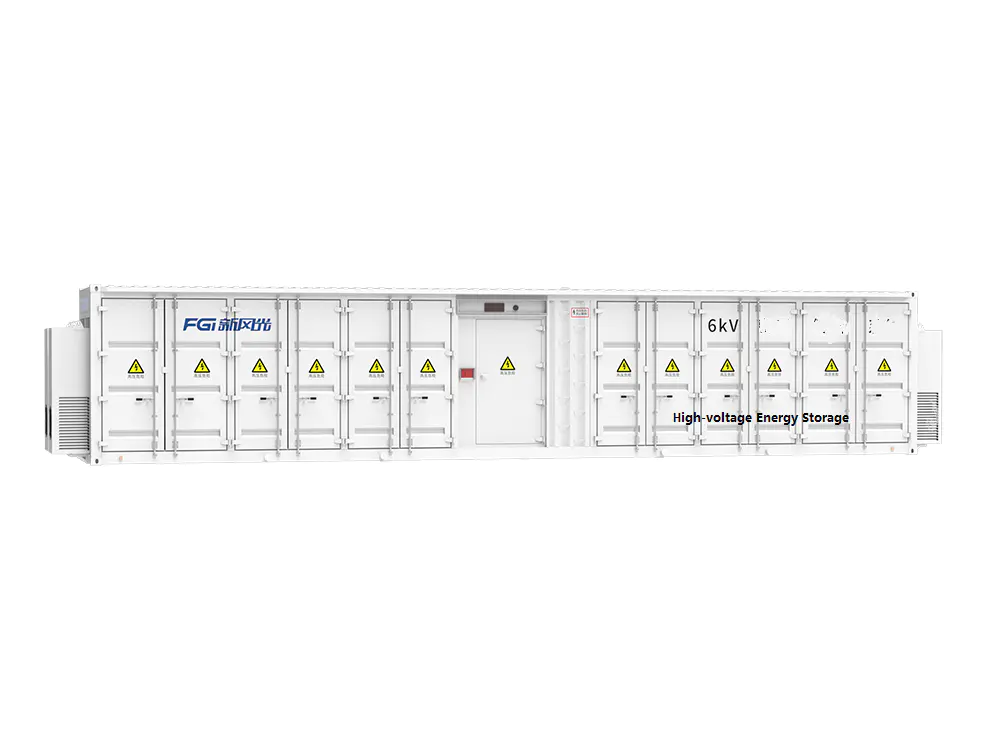

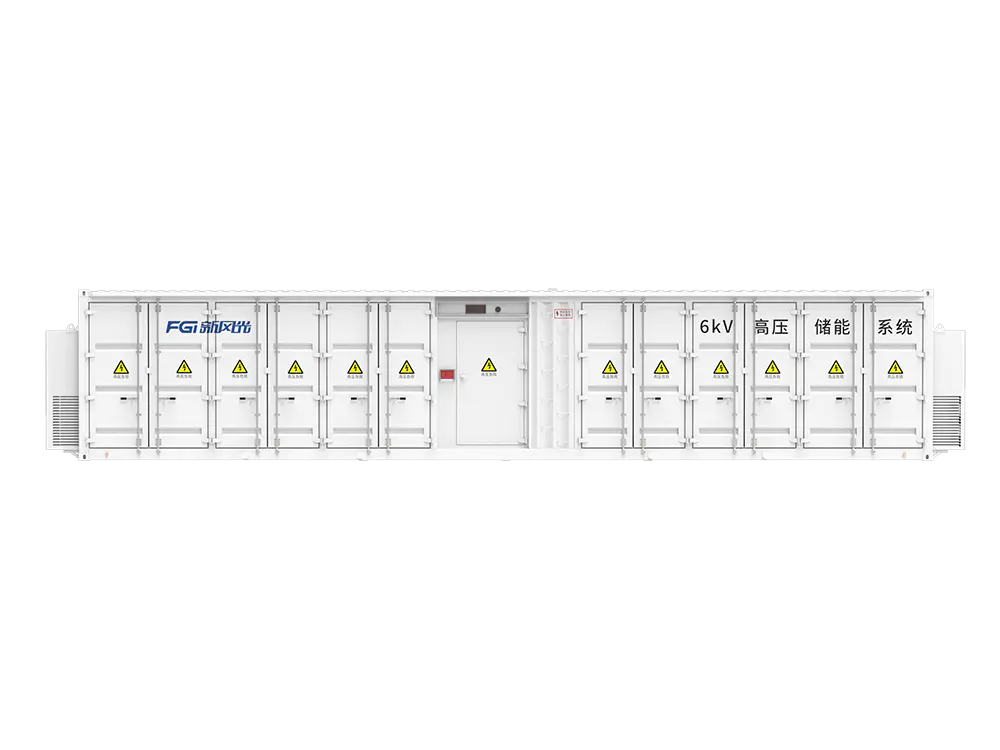

High voltage cascade storage system

Home
Products
Storage System
Casecade System
High voltage cascade storage system

High voltage cascade storage system

Product Profile & Features

High voltage cascade storage system
Product Features：
High protection level IP54, strong environmental adaptability
Integrated design, convenient for installation and maintenance
Direct mounted design, high overall efficiency
Automatic redundancy design, high reliability
Support multi-unit parallel connection, which can be rapidly expanded to 100 MW and above

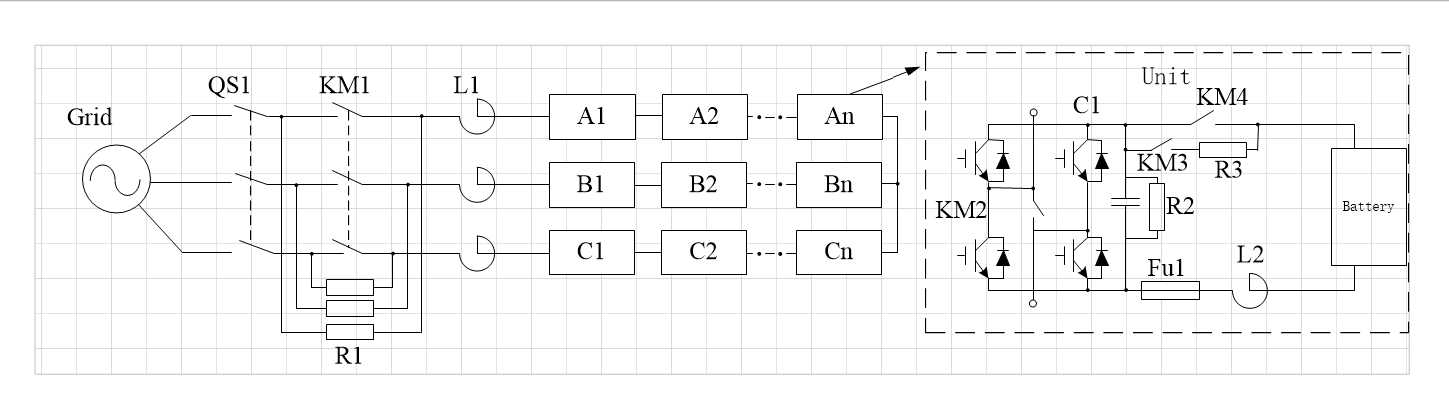

Electrical schematic diagram：

Parameters
Rated voltage	6kV~35kV±10%
Rated frequency	50Hz
Working frequency	48~50.5Hz
Rated capacity	2MW~100MW
Battery capacity	Configure according to the actual situation
Topology	H bridge cascade
Current harmonic(THDi)	＜3%(≥25%P)
Response time	＜10ms
Charge/discharge switching time	＜10ms
Over load capacity	110% 10mins, 120% 1mins
Power supply	Multichannel power supply
Control power supply	380VAC, 220VAC/220VDC
Reactive power regulation	With reactive power regulation function
Communication interface	Rs485, Ethernet
Communication protocol	Modbus RTU, IEC 103/104
Running mode	Active power/Reactive power independent control
Protection function	Short circuit protection, Over-current protection, island protection, communication protection, AC side undervoltage/overvoltage protection, DC side overvoltage/undervoltage protection, cooling system fault protection, etc
Multi module parallel connection	Support
Redundancy function	Support
Cooling mode	Air conditioner/Water cooling
Installation mode	Indoor/Outdoor container
Working temperature	-25~45℃
Protection degree	Indoor IP20, Outdoor IP54
Altitude	1000m/Customize

Power rating and dimension

Voltage class (kV)	Rated power (MW)	Rated capacity (MWh)	Weight (t)	Dimension(m)
Voltage class (kV)	Rated power (MW)	Rated capacity (MWh)	Weight (t)	Width(W)	Depth(D)	Height(H)
6	2	2	45	14	2.438	2.896
	2	4	90	2*14	2.438	2.896
	3	3	65	6.096+12.192	2.438	2.896
	3	6	130	3*12.192	2.438	2.896
10	4	4	95	3*9.144	2.438	2.896
	4	8	190	6*9.144	2.438	2.896
	5	5	110	3*12.192	2.438	2.896
	5	10	220	6*12.192	2.438	2.896
	10	10	230	6*12.192	2.438	2.896
	10	20	450	12*12.192	2.438	2.896
35	10	10	240	6*12.192	2.438	2.896
	10	20	460	12*12.192	2.438	2.896
	12	12	270	6*12.192	2.438	2.896
	12	24	540	12*12.192	2.438	2.896
	15	15	330	9*12.192	2.438	2.896
	15	30	650	18*12.192	2.438	2.896
	30	30	660	18*12.192	2.438	2.896
	30	60	1300	36*12.192	2.438	2.896
	50	50	1080	24*12.192	2.438	2.896
	50	100	2100	48*12.192	2.438	2.896
	100	100	2160	48*12.192	2.438	2.896
	100	200	4200	96*12.192	2.438	2.896

Note:
The above dimensions are for reference only, and the company reserves the right to upgrade and improve the product. The product dimensions are subject to change without notice.
