| Name | Specification |
| Rated voltage | 6kV±10%～35kV±10% |
| Assessment point voltage | 6kV±10%～35kV±10% |
| Input voltage | 0.9~ 1.1pu; LVRT 0pu(150ms), 0.2pu(625ms) |
| Frequency | 50/60Hz; Allow short-term fluctuations |
| Output capacity | ±0.1Mvar～±200 Mvar |
| Starting power | ±0.005Mvar |
| Compensation current resolution | 0.5A |
| Response time | <5ms |
| Overload capacity | >120% 1min |
| Power loss | <0.8% |
| THDi | <3% |
| Power supply | Dual power supply |
| Control power | 380VAC, 220VAC/220VDC |
| Reactive power regulation mode | Capacitive and inductive automatic continuous smooth adjustment |
| Communication interface | Ethernet, RS485, CAN, Optical fiber |
| Communication protocol | Modbus_RTU, Profibus, CDT91, IEC61850- 103/104 |
| Running mode | Constant device reactive power mode, constant assessment point reactive power mode, constant assessment point power factor mode, constant assessment point voltage mode and load compensation mode |
| Parallel mode | Multi machine parallel networking operation, multi bus comprehensive compensation and multi group FC comprehensive compensation control |
| Protection | Cell DC overvoltage, Cell DC undervoltage, SVG overcurrent, drive fault, power unit overvoltage, overcurrent, overtemperature and communication fault; Protection input interface, protection output interface, abnormal system power supply and other protection functions. |
| Fault handling | Adopt redundant design to meet N-2 operation |

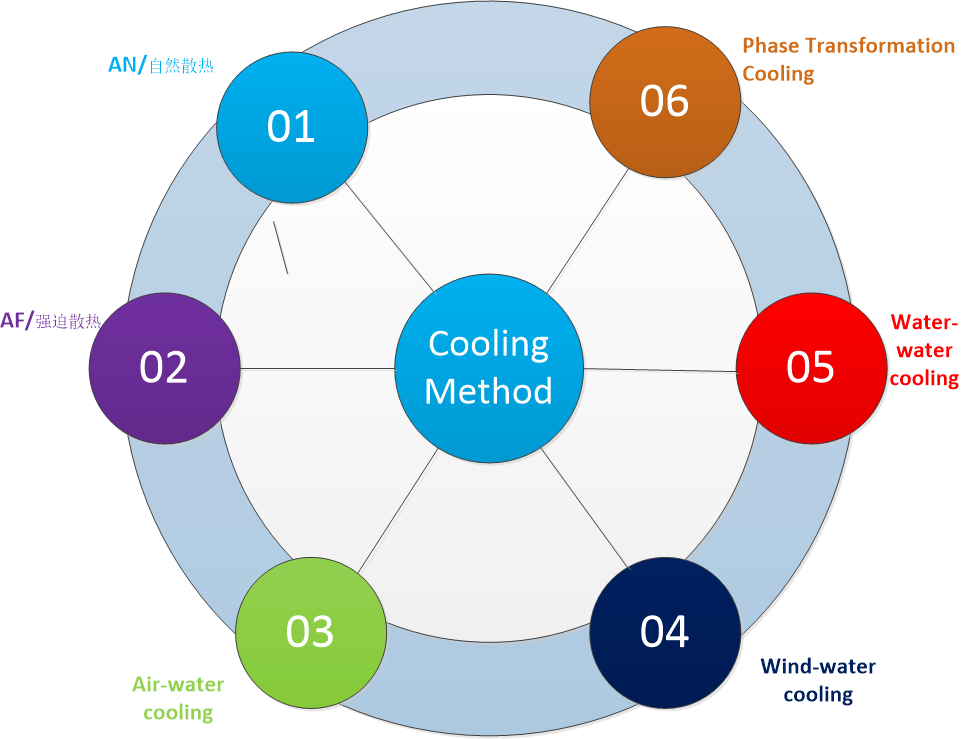

| Cooling mode | Water cooling/Air cooling |
| IP degree | IP30(indoor); IP44(outdoor) |
| Storage temperature | -40℃～+70℃ |
| Running temperature | -35℃～ +40℃ |
| Humidity | <90% (25℃), no condensation |
| Altitude | <=2000m (above 2000m customized) |
| Earthquake intensity | Ⅷ degree |
| Pollution level | Grade IV |

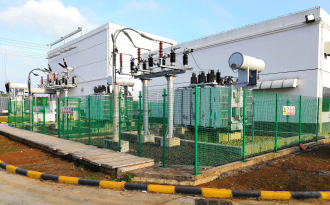

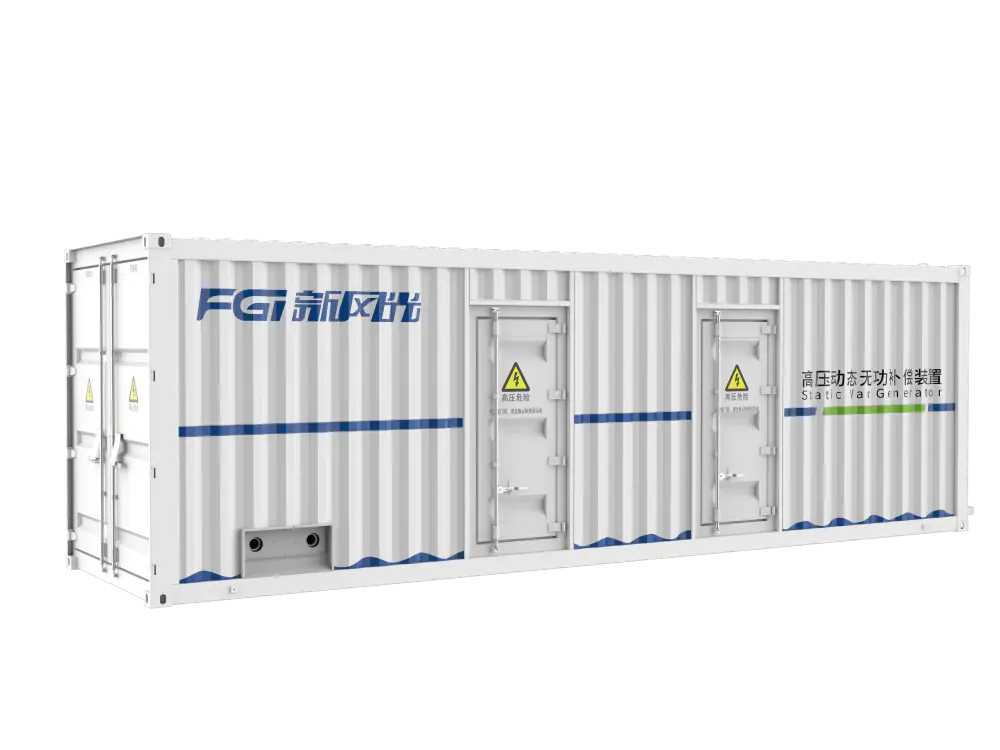

| Voltage class(kV) | Rated capacity(Mvar) | Dimension W*D*H(mm) |
Weight(kg) | Reactor type |
| 35 | 8.0～21.0 | 12700*2438*2591 | 11900～14300 | Air core reactor |
| 22.0～42.0 | 25192*2438*2591 | 25000～27000 | Air core reactor | |
| 43.0～84.0 | 50384*2438*2591 | 50000～54000 | Air core reactor |

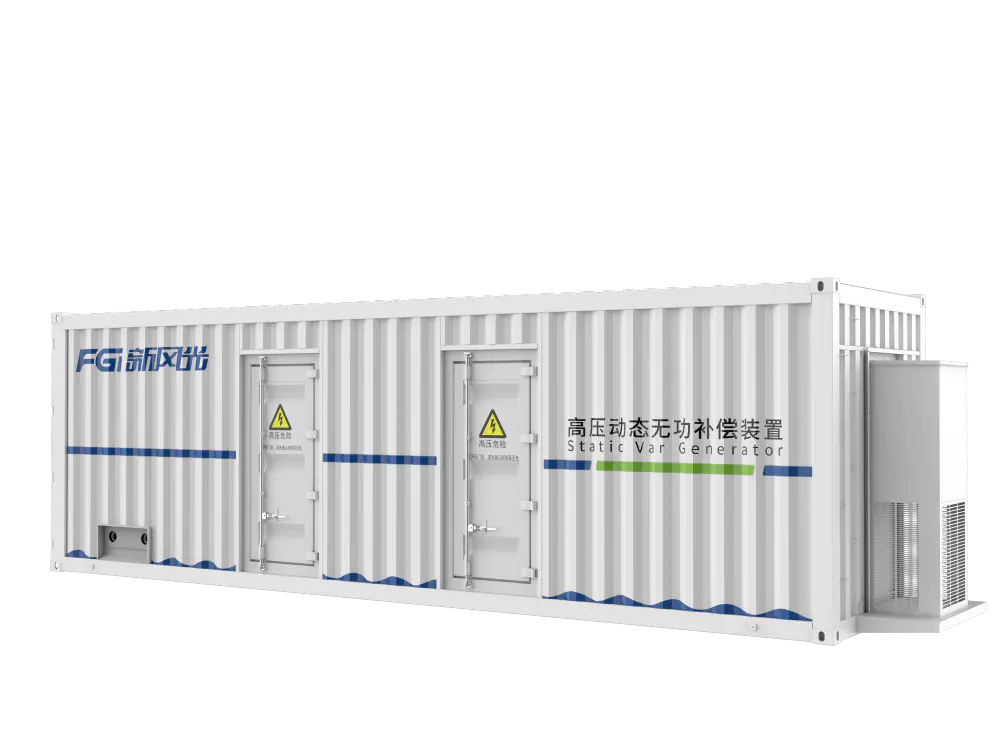

| Voltage class(kV) | Rated capacity(Mvar) | Dimension W*D*H(mm) |
Weight(kg) | Reactor type |
| 35 | 5.0～26.0 | 14000*2350*2896 | 19000～23000 | Air core reactor |
| 27.0～50.0 | 14000*2700*2896 | 27000～31000 | Air core reactor | |
| 51.0～100.0 | 28000*2700*2896 | 54000～62000 | Air core reactor |
